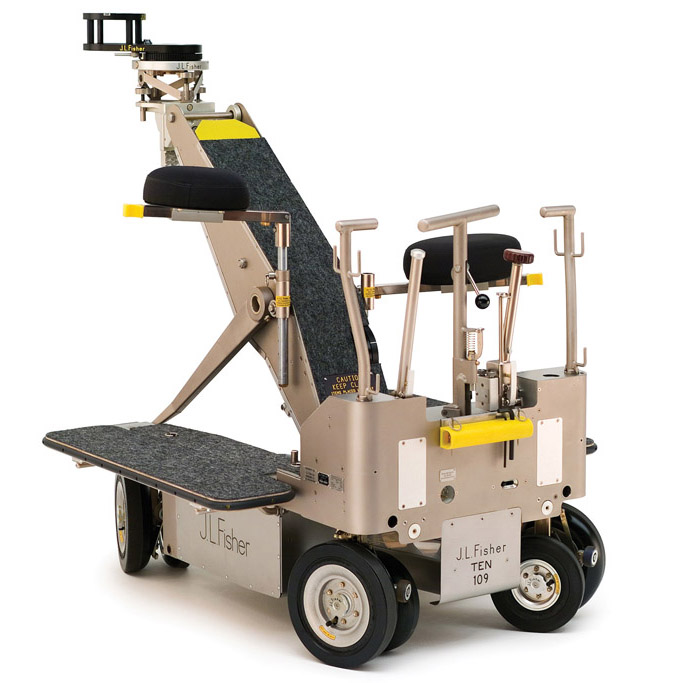

Fisher 10 Dolly
Specifications
| Max. lift beam elevation with Standard Level Head (SLT) | 62.625 inches(159.068 cm) |
| Min. lift beam elevation with Standard Level Head (SLT) | 13.75 inches (34.925 cm) |
| Min. lift beam elevation with Low Level Head (LHT) | 3.125 inches (7.938 cm) |
| Vertical beam travel | 46.875 inches (119.063 cm) |
| Lift capacity | 500 pounds (226.8 kg) |
| Length | 55.5 inches (140.97 cm) |
| Width | 26.5 inches (67.31 cm) |
| Height (operating) | 38.625 inches (98.108 cm) |
| Height (folded) | 25 inches (63.5 cm) |
| Minimum turn radius (round steering) | 22 inches (55.88 cm) |
| Minimum turn radius (conventional steering) | 44 inches (111.76 cm) |
| Carrying weight | 420 pounds (190.51 kg) |
| Maximum Dolly load capacity | 1200 pounds (544 kg) |
| Lifts per system charge | 7 |

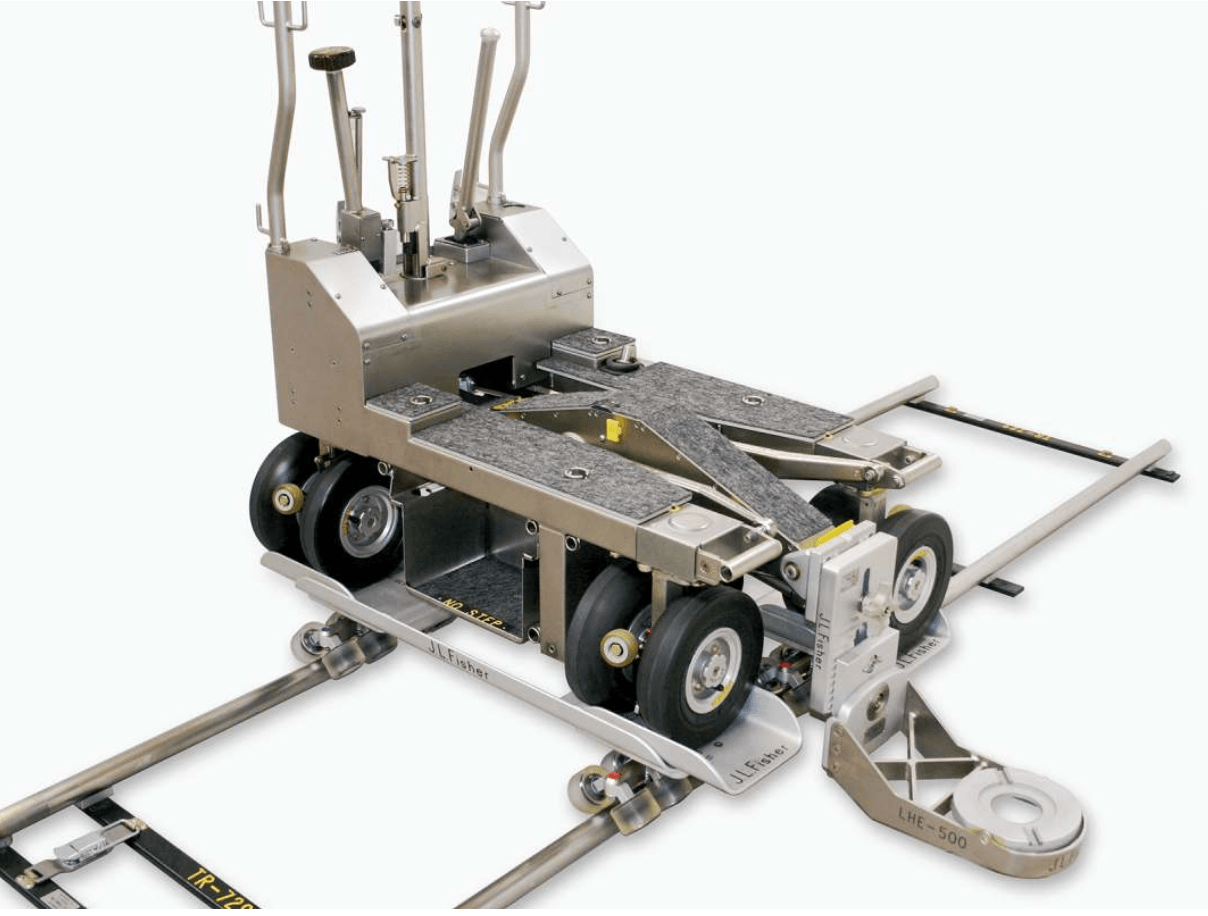

Fisher 11 Dolly
Specifications
|
||||||||||||||||||||||||||||||||||
Fisher Skateboard Wheels (Centipede)
Caution: Use proper lifting techniques when lifting dolly.
The Skateboard Wheels incorporate articulating trucks allowing all 32 wheels to maintain contact with the track for better control and stability, on both straight and curved round track. Wheels are precision ground for smoother, quieter operation. Skateboard Wheels work with all J.L. Fisher Dollies and Jib Arms, including the Model 23 Jib. Maximum weight on the Skateboard Wheels is 2000 lbs.

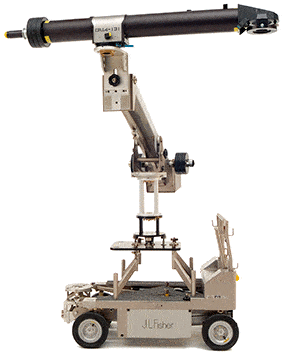

Fisher Center Mount
The Center Mount (CM), used on J.L. Fisher Dolly Models 11, 10 and 9, supports jib arms, lightweight camera booms and counterbalanced camera cranes. The Center Mount has thumbscrews for four-way leveling adjustment and a leveling indicator. Easily installed, the Center Mount has a standard Mitchell mount and comes with a heavy duty 12-inch Riser (R12).
The maximum gross load capacity is 900 pounds (409 kg). Center Mount is not for supporting personnel or personnel carrying cranes.
Fisher Pneumatic Wheels
Pneumatic Wheels (8)

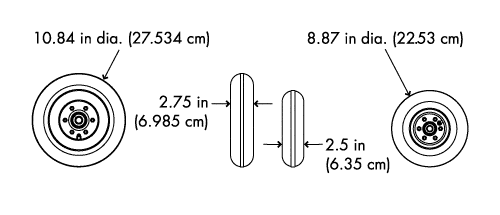

Each dolly has eight Pneumatic Wheels as standard equipment. These Wheels have polyurethane-covered rubber pneumatic tires, concentrically ground for smooth, steady performance. The model 11 Dolly uses 8.87 inch diameter wheels. The model 9 Dolly uses 10.84 inch diameter wheels. The model 10 dolly uses a combination of 8.87 and 10.84 inch diameter wheels. (Model 10 configuration shown below.)
Fisher Round Track Wheels
The Round Track Wheels (TTW) enable the J.L. Fisher Dolly Model 10 to operate safely, smoothly and easily on Round Straight Track or Round Curved Track. Wheels can be left on the Dolly while shooting on stage flooring and are quickly changed with one screw each.
FilmAir Hi-Load Aluminum Track (American Standard Profile)
Available in 2 to 10 feet.
Hi-load swing fold dolly track is constructed of anodized structural aluminum, and designed to carry maximum loads with minimum deflection. The track rails are flush with the ground, and thus supported along their entire length preventing any flexing between crossbars. The load carrying capacity of this track is rated in excess of two tons fitted with precision machined stainless steel cones and connectors for corrosion proof durability and maintenance free use. This track is light enough to carry to any location but rugged enough to survive the heaviest usage and proven by time to sustain less than 20% of damage recorded on heavier steel track.

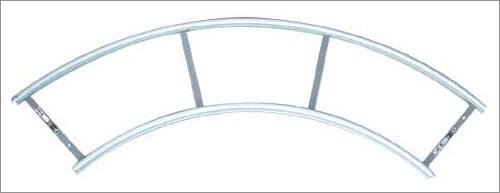

FilmAir 90 Degree Curved (American Standard Profile)
The hi-load curved dolly track is constructed of anodized structural aluminum and designed to carry maximum loads with minimum deflection. Flexing between crossbars is prevented as the rails are in contact with the ground along their entire length. Therefore, the load carrying capacity is rated in excess of two tons. Four of these curved sections are needed to make up a circle, which has a 14 ft. (4.2 m) outside diameter.

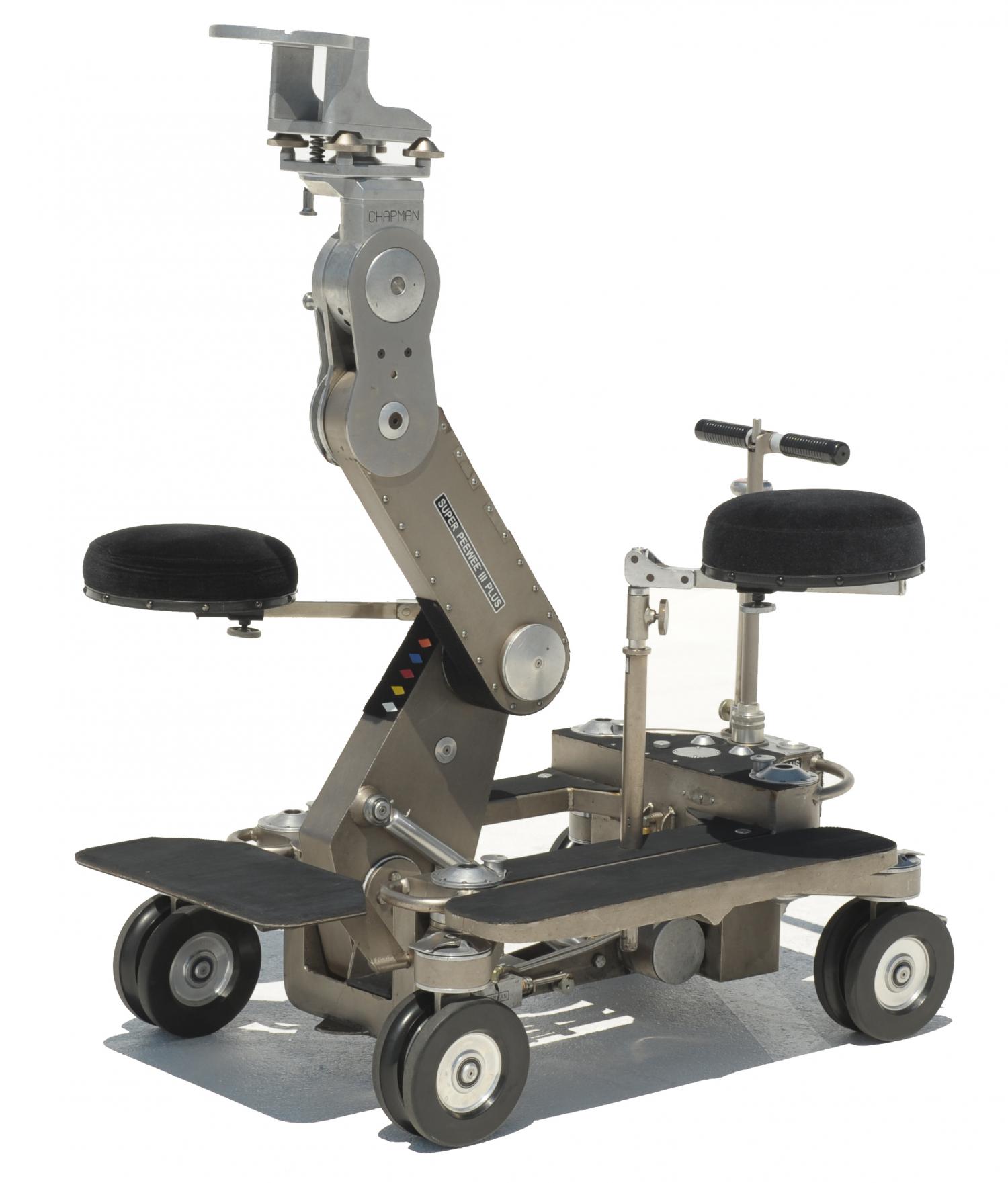

Super PeeWee 3 Standard Package
| Maximum Camera Mount Height (Position 1 – 90 degrees Mode | 4 ft. 11.75 in. | 1.54 m |
| Minimum Camera Mount Height (Position 1 – 90 degrees Mode) | 29.5 in | 79 cm |
| Vertical Boom Travel (Position 1 – 90 degrees Mode) | 30.25 in | 77 cm |
| Maximum Camera Mount Height (Position 2 – 45 degrees Mode) | 4 ft. 9.5 in. | 1.48 m |
| Minimum Camera Mount Height (Position 2 – 45 degrees Mode) | 25.5 in | 65 cm |
| Vertical Boom Travel (Position 2 – 45 degrees Mode) | 32 in | 81 cm |
| Maximum Camera Mount Height (Position 3 – Low Mode)( | 4 ft. 2.5 in. | 1.28 m |
| Minimum Camera Mount Height (Position 3 – Low Mode) | 19.25 in | 48 cm |
| Vertical Boom Travel (Position 3 – Low Mode) | 31.25 in | 82 cm |
| Maximum Camera Mount Height (Position 4 – Extender Mode) | 4 ft. 11 in. | 1.49 m |
| Minimum Camera Mount Height (Position 4 – Extender Mode) | 20.75 in | 53 cm |
| Vertical Boom Travel (Position 4 – Extender Mode) | 38.25 in | 97 cm |
| Min. Camera Mt Height (Low Bar/Lowest 4-Way Leveling Head) | 5 in | 12 cm |
| Max. Camera Mt Height (Low Bar/Lowest 4-Way Leveling Head) | 36 in | 91 cm |
| Maximum Payload* | 250 lb | 113 kg |
| Maximum Payload with High Post Kit** | 1,100 lb | 499 kg |
| Maximum Boom Lifts (Fully Charged) | 4 Lifts | |
| Maximum Boom Lifts (Fully Charged) | 43 in | 1.09 m |
| Chassis Minimum Length (Wheels Fully Retracted) | 34.5 in | 88 cm |
| Minimum Chassis Height for Transportation | 16 in | 41 cm |
| Chassis Width – Legs at 0 degrees Position | 20 in | 51 cm |
| Chassis Width – Legs at 17 degrees Position | 23.5 in | 60 cm |
| Chassis Width – Legs at 45 degrees Position | 28.5 in | 71 cm |
| Chassis Width – Legs at 90 degrees Position | 32 in | 81 cm |
| Steering Post Height | 35 in | 89 cm |
| Minimum Turn Radius | 24 in | 61 cm |
| Min Door Width PeeWee Can Be Carried Through | 16 in | 41 cm |
| Accumulator Charging Time (Empty to Full) | 60 sec. | |
| Carrying Weight | 295 lb | 134 kg |
| Operational Weight | 329 lb. | 149 kg |
| Operational Weight with High Post Kit (No Payload) | 386 lb | 175 kg |

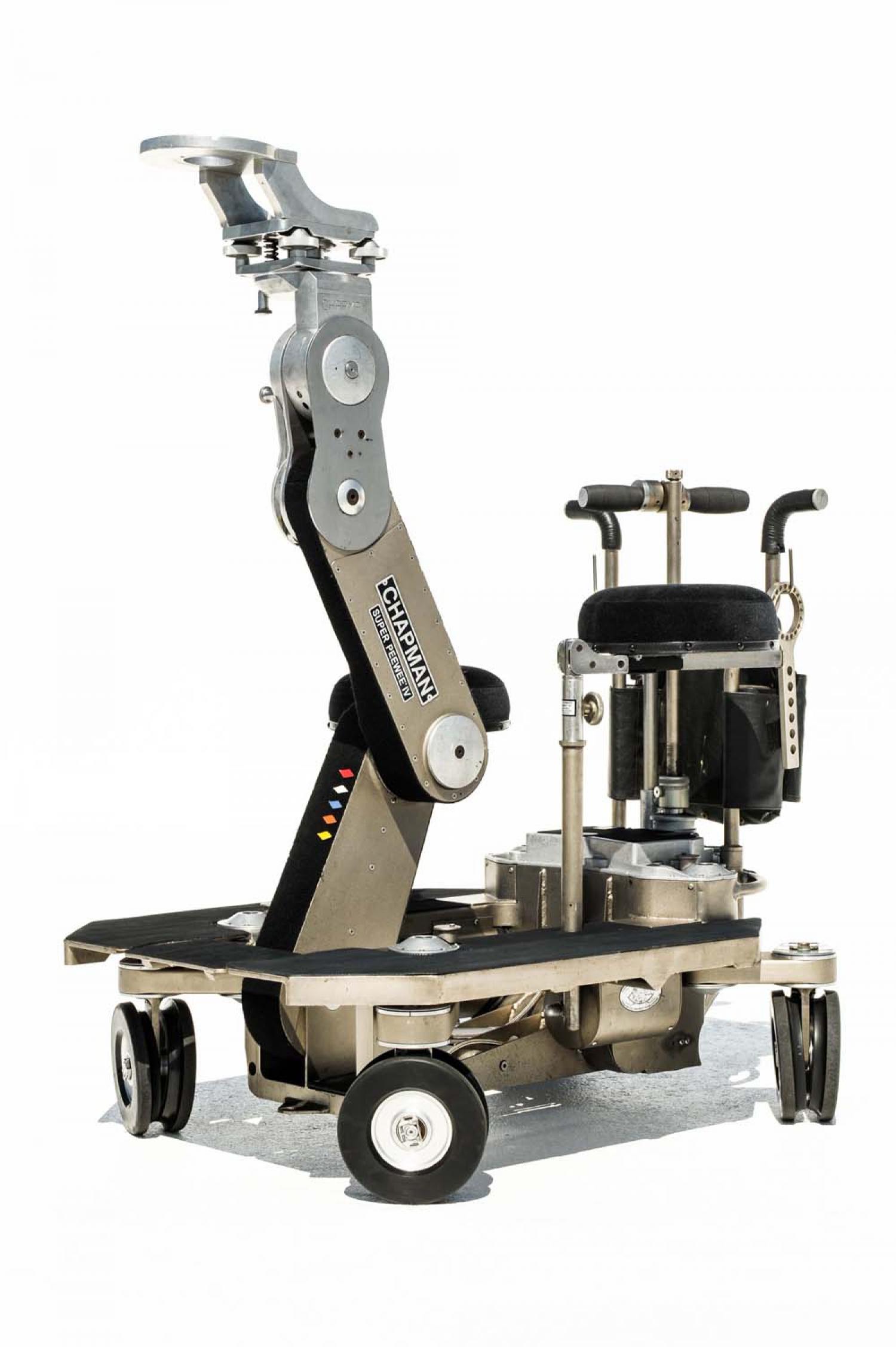

Super PeeWee 4 Standard Package
| Maximum Camera Mount Height (Position 1- 90 degrees Mode) | 5 ft. 0.5 in. | 1.53 cm |
| Minimum Camera Mount Height (Position 1- 90 degrees Mode) | 27.25 in | 69 cm |
| Vertical Boom Travel (Position 1- 90 degrees Mode) | 33.25 in | 84 cm |
| Maximum Camera Mount Height (Position 2 – 45 degrees Mode | 4 ft. 10.5 in. | 1.48 m |
| Minimum Camera Mount Height (Position 2 – 45 degrees Mode) | 26 in | 66 cm |
| Vertical Boom Travel (Position 2 – 45 degrees Mode) | 33.25 in | 84 cm |
| Maximum Camera Mount Height (Position 3 – Low Mode) | 4 ft. 3.5 in. | 1.3 m |
| Minimum Camera Mount Height (Position 3 – Low Mode) | 19 in | 48 cm |
| Vertical Boom Travel (Position 3 – Low Mode) | 33.25 in | 84 cm |
| Maximum Camera Mount Height (Position 4 – Extender Mode) | 5 ft. 0.5 in. | 1.53 m |
| Minimum Camera Mount Height (Position 4 – Extender Mode) | 19 in | 48 m |
| Vertical Boom Travel (Position 4 – Extender Mode) | 41.25 in | 1.05 m |
| Min. Camera Mt Height (Low Bar/Low 4-Way Leveling Head) | 4.5 in | 11 cm |
| Max. Camera Mt Height (Low Bar/Low 4-Way Leveling Head) | 3 ft. 1 in. | 94 cm |
| Chassis Width – All Legs at 0 degrees (Use in Tight Quarters) | 20 in | 51 cm |
| Chassis Width – All Legs at 10 degrees (Pneumatic or 880mm Pos) | 25 in | 64 cm |
| Chassis Width – All Legs at 45 degrees (Track Pos) | 28 in | 71 cm |
| Chassis Width – All Legs at 70 degrees (Tread & Wheel Base Equal) | 32 in | 79 cm |
| Chassis Width – All Legs at 84 degrees (Sideways or Scissor Pos) | 32.75 in | 81 cm |
| Chassis Width – Front Legs at 84 degrees /Rear at 0 degrees (3 Point Med Tire) | 32.75 in | 81 cm |
| Chassis Width – Front Legs at 84 degrees /Rear at 10 degrees (3 Point Pneu) | 32.75 in | 81 cm |
| Chassis Width – Front Legs at 180 degrees /Rear at 0 degrees (Med Tire) | 20 in | 51 cm |
| Chassis Width – Front Legs at 170 degrees /Rear at 10 degrees (Compact Pneu) | 25 in | 64 cm |
| Steering Post Height | 35 in | 89 cm |
| Minimum Chassis Length | 2 ft. 10 in. | 87.6 cm |
| Maximum Chassis Length | 3 ft. 10 in. | 1.09 m |
| *Maximum Payload with Accumulator Charge at 2,400psi | 320 lb | 145 kg |
| *Maximum Payload with Accumulator Charge at 2,600psi | 350 lb | 159 kg |
| **Maximum Payload with High Post Kit | 1,100 lb | 499 kg |
| Maximum Number of Lifts on a Single Charge | 5 lifts | |
| Accumulator Charging Time (Empty to Full) | 60 sec | |
| Carrying Weight | 295 lb | 134 kg |
| Operational Weight | 329 lb | 149 kg |
| Operational Weight with High Post Kit (No Payload) | 386 lb | 175 kg |
