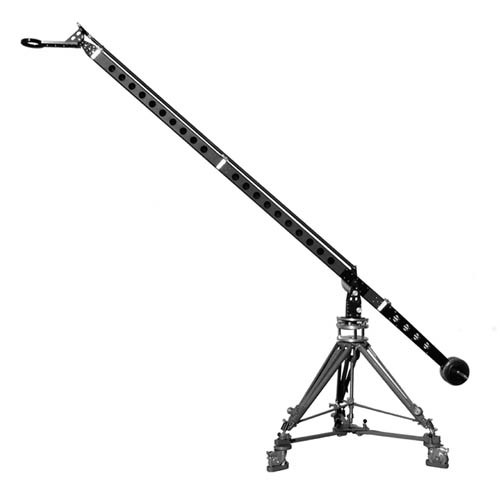

Intel-A-Jib™
Among the many features that differentiate the Intel-A-jib™ from the competition is the one-piece X-Box Extrusion modular beam. This design element offers superior anti-deflection and anti-distortion of the arm. The Intel-A-Jib; sets up in less than two minutes without any tools due to the innovative V-Lock component connector locking system. With extensions of either 10 or 6 feet in length, the Intel-A-Jib™ can accept virtually any camera package, expanding great image-making creativity.
The Intel-A-Jib™ uses the internationally accepted Mitchell Mounting System to interface with the support tripod system and for camera mounting.
There are many accessories designed to expand the jib arm’s capability and functionality. Mounting the Intel-A-Jib™ to Matthews MT-1 Heavy-Duty Tripod and the DL-7 Dolly (sold separately) allows the operator to quickly and easily position the fixture thereby ensuring many more opportunities to capture that ‘perfect’ shot.
| GENERAL SPECIFICATIONS | |||
|
|
|||
| Min Reach | 6′ (1.83 Meters) | ||
| From center of fulcrum pivot point, to center of 7″ Mitchell mount | |||
| Max Reach | 10′ (3.10 Meters) | ||
| From center of fulcrum pivot point, to center of 7″ Mitchell mount | |||
| Max Camera Package Load Capacity | 120lbs at 6″ (54.43kg at 1.83m) 80lbs at 10′ (36.29kg at 3.10m) |
||
| Overall Assembled Length | 9’7″ at 6′ (2.96m at 1.83m) 13’8″ at 10′ (4.21m at 3.10m) |
||
| Weight at Full Extension (less counterbalance weight) | 65lbs at 10′ (28.48kg at 3.10m) | ||
| Counterbalance Weight to Load Ratio | 1.8:1 at 6′ (1.83m) 3.0:1 at 10′ (3.10m) |
||
| Camera Mount Options | Over/Under 7″ Mitchell (flat-base) | ||
| Intel-A-Jib Mounting Requirements | Dolly, tripod, or other, with 7″ Mitchell mount (rated for weight of jib, camera package and counterbalance weight) |
||
| DISTINCTIVE FEATURES | |||
|
|
|||
| Set Up Time | Under two minutes | ||
| Construction | Machined/extruded aluminum and stainless steel | ||
| Finish | Black anodize and powder coat | ||
| Arm Extrusion Design | One Piece X-Box Extrusion for superior anti-deflection and anti-torsion properties |
||
| Arm Section Connectors | V-Lock Connector for fast secure assembly | ||
| Arm Sections Included | One main arm for 6′ reach, one extension arm for 10′ reach | ||
| Counterweight Style | Standard 1″ barbell | ||
| Additional Distinctive Features | Camera platform level adjustment, fine tuning weight, high visibility dual bubble levels, tilt and pan brake, fits in two optional cases |
||

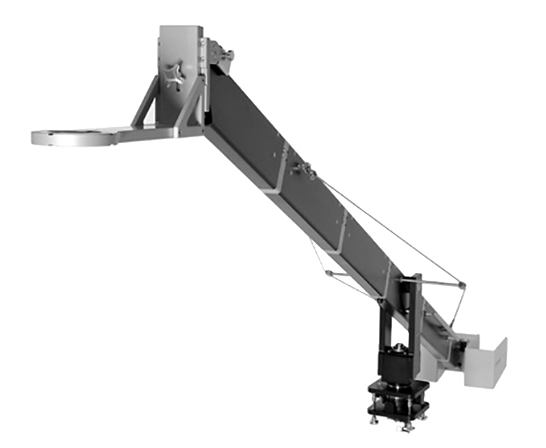

Aero-Jib
- Quick Set Up Time
- Weather Proof
- Adjustable Drag for Pan and Tilt
- Movable Counter-Weight
- Camera can be top mounted or underslung
The Aero-Jib is a fully featured jib arm, that can adjust size quickly. From 5′ to 10′ in minutes to fit fast paced locations and sets.
Call us with any questions!

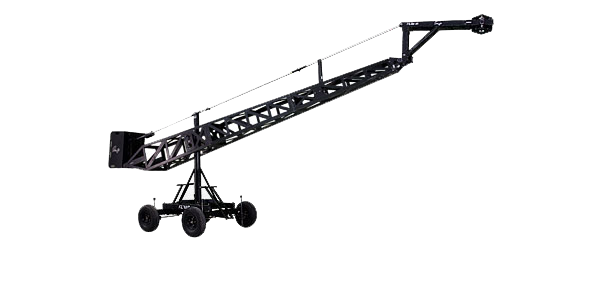

Giraffe Crane Package (With Trailer)
This crane is modular and flexible. Fast and versatile, the Giraffe Classic Crane does not need any bracing. It is the best all terrain crane. The tapered sections nest inside each other, making it easily transportable, in light vans, small airplanes, helicopters and boats. Can be hand-carried up mountains and hard-to-reach locations.

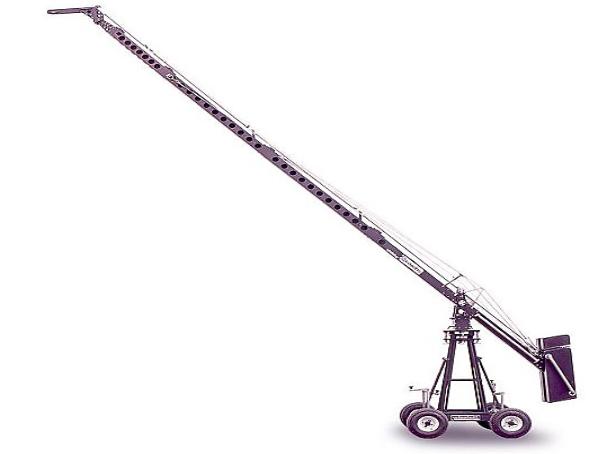

Enlouva Crane (With Trailer)
The Enlouva is a very versatile location crane that features a modular design that can be assembled by two people in less than 15 minutes and offers lens heights of negative ground level to more than 19 feet. Constructed of aircraft quality aluminum, stainless steel, and assembled with precision bearings, this crane weighs less than 350lbs. A hydraulic dampening system virtually eliminates Boom Whip in both the pan and tilt axis. Mounting options include Fisher 10 dolly platform, castors, and the Cinemotion Insert / Camera Car.
|
